OHC3-288 Optical Hub Cabinet - Amphenol Broadband Solutions

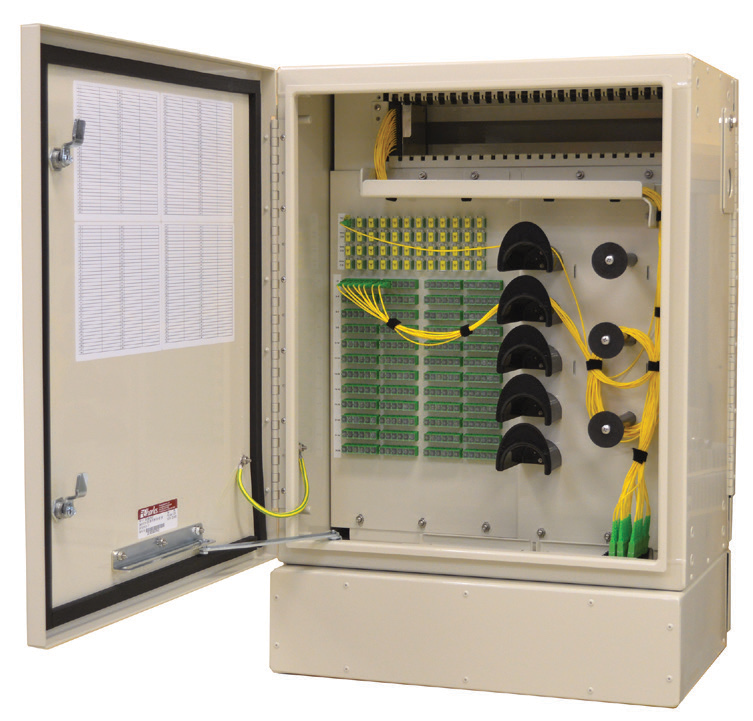

Optical Hub Cabinets (OHC) provide fiber distribution to subscribers from a compact, environmentally protected outdoor terminal. OHC have been designed with flexibility in mind and support fusion, pre-terminated and field terminated feed and drop fibers. These PON terminals have space for multiple splitters for incremental growth. They may be pad mounted and are well suited for multi-dwelling unit (MDU) distribution in centralized or distributed Optical Network Terminals (ONT). The OHC 288 houses 48 feed/pass-thru adapters and 288 distribution adapters for fiber distribution to high density buildings with many potential subscribers. OHC are constructed from powder-coated aluminum that is both durable and lightweight. The unit can be quickly installed by a single technician. Front and rear dual access doors are secured with low-profile, 216-tool quarter turn locks and padlock hasps for additional access control. A grounding bus bar with multiple grounding studs is provided.

Product Gallery:

Features:

Supports pre-terminated and field terminated feed and drop fibers
Front and rear access doors are secured with low-profile, 216- tool quarter turn locks and padlock hasps for additional access control

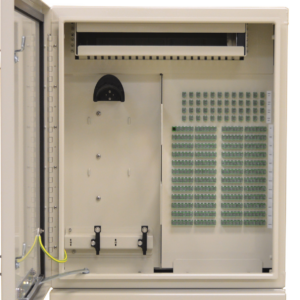

Durable and lightweight pad mount enclosure can be quickly installed • Multiple cable entry locations are positioned at the bottom of the enclosure, allowing flexible placement of feed and distribution cables
Fiber bend radius controls and routing guides ensure cable management and proper slack storage
Amphenol Fiber Splitter Modules are available with optimized pigtail lengths
Constructed from powder-coated aluminum
Well suited for centralized split in a Passive Optical Network (PON)

Additional Information:

Optical Hub Cabinet
