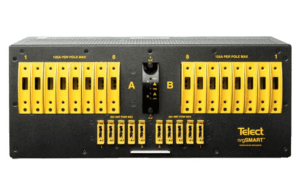

nrgSMART 600A Load Center panels are available with dual-feed 10/10 or single-feed 20 circuit breaker positions to accommodate bullet-style breakers or fuse holders. The panels feature -48V operating voltage to fit in legacy and “next-gen” network applications, with advanced circuit level monitoring features engineered into a compact 2RU footprint.
| Inputs | |
| Voltage range, nominal voltage | -40V to -60V (Nominal -48V) |
| Maximum input load rating | 600A per feed |
| Short circuit withstand rating | 5000A |
| Nominal power loss at full load | Less than 7W per side @ 28,000W full load (600A x 48V) |
| Percentage of full power dissipation at nominal voltage | Less than 1% |
| Max. input interrupt device | 750A |
| Input terminal studs (with nuts, flat washers and spring washers) for dual-hole compression lugs |
– Two pair of 3/8-16 studs on 1-in. centers per terminal [max. lug width of 1.94-in. (49.2 mm)] per pair – Torque nut (using 9/16-in. or 15 mm wrench) to 150-in.-lb. (~17N•m), max. |
| Input wire size | #1 AWG to 750MCM |
| Outputs | |
| Max. output circuit breaker | Single-pole: 100A Double-pole: 175A Triple-pole: 250A |
| Max. output load (ea.) – continuous | Single-pole: 80A Double-pole: 140A Triple-pole: 200A |
| Minimum short circuit interrupt rating | 5000A |
| Max. total output load | 550A per side |
| Output terminal studs (with KEPS, nuts, and washers) for dual-hole compression lugs |
– 1/4-20 studs on 5/8-in. centers [max. lug width of 0.625-in. (15.8 mm) for a BATT terminal and 0.70-in. (17.7 mm) for a RTN terminal] – Torque bolts (using 7/16-in. or 12 mm wrench) to 50-in.-lb. (5.5 N•m), max. |
| Output wire size | – #10 AWG (min.) for a 25A single-pole interrupter to #2 AWG (min.) for a 100A single-pole interrupter – #2 AWG (min.) for double-pole interrupters from 100A to 175A – 2/0 AWG (min.) for triple-pole interrupters |
| Circuit breakers* | AIRPAX®-style LEL or Carling-style CA1** |
| * Telect suggests you avoid using different types of circuit breakers in the same load center. Alarm contacts may vary among interrupter manufacturers and may incapacitate the alarm system. ** Circuit breakers for this load center are designed and manufactured by Airpax Corporation and Carling Industries to meet Telect’s symmetrical pin specifications. Order circuit breakers only from Telect. |
|
| Grounding | |
| Earth GND terminal bolts (with washers) for dual-hole compression lugs | – Two pair of 1/4-20 threaded holes on 5/8 in. centers.
– Torque bolts (using 7/16 in. or 12 mm wrench) to 50 in.-lb. (5.5 N•m), max.
|
| Input wire size | #2 AWG (min.) for any input interrupt device 400A or more |
| Alarm | |
| Alarm wire size | #24 AWG, typical (#26 to #20 AWG) |
| Alarm terminals | Wire wrap |
| Relay contact ratings | Dry Form-C contacts (1A @ 30 VDC; 0.5A @ 60 VDC, 0.3A @ 125 VAC) |
| Max. alarm power rating | @24V: 72 mA (1.73W) @48V: 147 mA (7.06W) |
| Voltage Sensor | |
| Sensor accuracy | 0 to -19.99V: ±0.3V -20V to -60V: ±0.1V |
| Voltage measurement range | 0 to -60 VDC |
| Feed voltage detection | 0 to -19.99V: Alarm -20V to -60V: Normal |
| NOTE:
– Voltage measurement may be slightly different than at input terminal blocks due to the voltage drop within the panel.
– Sensors are factory calibrated and do not require user adjustment.
|
|
| Communication | |
| nrgNET sensor and alarm card power | -48 VDC nominal |
| nrgNET data communication | RS-485 |
| nrgNET connector | Removable 5-pin connector with screw down terminals |
| nrgNET connector functions | nrgNET IN from the nrgCONTROL or nrgSMART panel, nrgNET OUT to next in-line nrgSMART panel |
| Supported protocols | Proprietary nrgNET used to communicate between panels and controller |
| Fit and Finish | |
| Material | Cold-rolled steel |
| Color | Pewter grey powder coat |
| Mechanical | |
| Dimensions (L x W x H) | 19″ L x 15″ W x 3.5″ H (483 mm x 381 mm x 88 mm) |
| Rack space | 2RU |
| Weight, without packaging and accessories | 18 lbs. (8.2kg) |
| Weight, shipping | 25 lbs. (11kg) |
| Environmental | |
| Operating temperature | -10°C (14°F) to 44°C (127°F) |
| Humidity | 90% and non-condensing |
