Outdoor Fiber Distribution Hub for Passive Optical Networks (GPON/EPON)

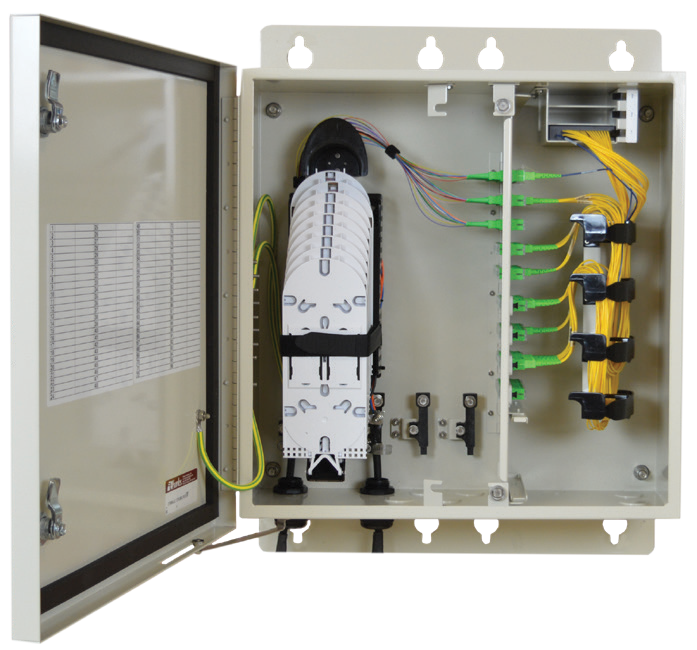

The Amphenol CFIT Hubs provide fiber distribution to up to 96 subscribers from a compact, environmentally protected outdoor terminal. CFIT Hubs have been designed with flexibility in mind and support fusion, pre-terminated and field terminated feed and drop fibers. These PON terminals have space for multiple 1×32 splitters for incremental growth. They are commonly mounted to an exterior wall of a multi-dwelling unit (MDU) for distribution to centralized or distributed Optical Network Terminals (ONT).

CFIT Hubs provide fiber distribution to up to 96 subscribers from a compact, environmentally protected outdoor terminal. CFIT Hubs have been designed with flexibility in mind and support fusion, pre-terminated and field terminated feed and drop fibers. These PON terminals have space for multiple 1×32 splitters for incremental growth. They are commonly mounted to an exterior wall of a multi-dwelling unit (MDU) for distribution to centralized or distributed ONT.

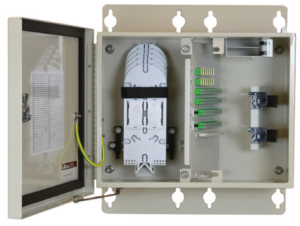

CFIT Hubs are constructed from powder-coated aluminum that is both durable and lightweight. The unit can be quickly installed by a single technician. The main entrance door is secured with a low-profile, 216-tool quarter turn lock and padlock hasp for additional access control. Both internal and external bond locations are provided. A compact hub (CFIT-HC) option is available for applications of up to 48 subscribers, ideal for small sized MDU.

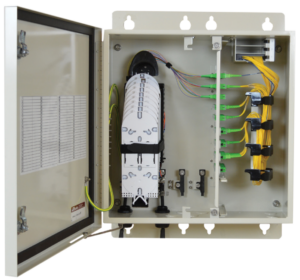

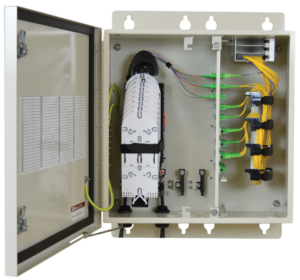

Product Gallery:

Features:

216-tool hex-head quarter turn lock
Fiber identification label
Bend radius controls
Hinged splice trays (up to 9 tray capacity)
Feed cable grommet locations
Distribution cable grommet locations
Hinged bulkhead (locks in two positions)
Bulkhead adapters
Three splitter slots

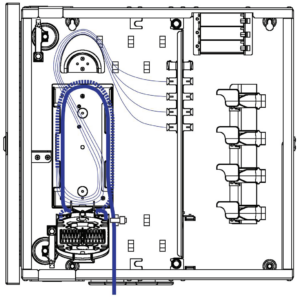

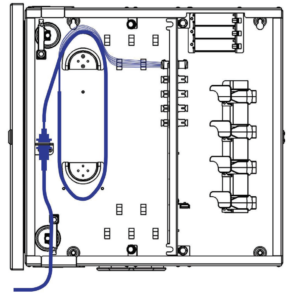

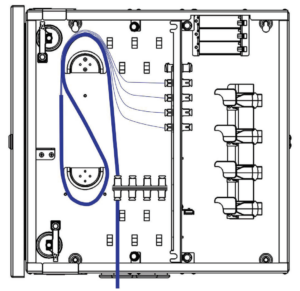

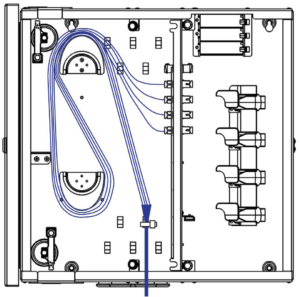

Fiber routing guides
Cabinet mounting “keyholes” (x2)
Internal and external ground lugs

Additional Information:

Fiber Interconnect Terminal (CFIT) Hubs
