OSP & Enclosures

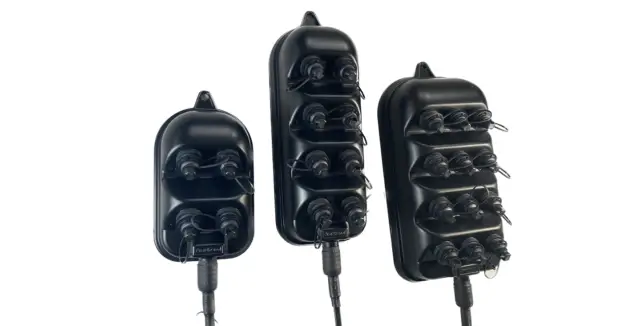

Part # AMT – Amphenol Multiport Terminal

Amphenol offers network distribution points in various configurations and footprints. The Amphenol Multiport Terminal (AMT) is ideally suited for applications where customization and future expansion is required. Various port options and connector styles allow for flexibility and customization depending on the number of outputs needed. Robust plastic design is factory sealed to guarantee IP67 / 68 ingress protection and applicable GR-771-Core requirements. An optional removable shield is available for added protection.

Part # Mini AMT – Amphenol Multiport Terminal

Amphenol offers network distribution points in various configurations and footprints. The Mini Amphenol Multiport Terminal (Mini AMT) is ideally suited for applications where minimal space impact is desired. Various port options and connector styles allow for flexibility and customization depending on the number of outputs needed. The housing accommodates splitters in 1x4, 1x8 and 1x12 formats. Robust plastic design is factory sealed to guarantee IP67 / 68 ingress protection and applicable GR-771-Core requirements.

Part # CUBE PM616 Series

PM616 Series Enclosoures can serve a wide range of radio and base transceiver station (BTS) equipment such as power plants, routers, BBUprotection, site monitoring and fiber panels. With 16 RU of 23” rackmount space in both the front and rear, these rugged enclosures are available in many different configurations with an assortment of thermal options for even the most demanding heat dissipation needs. Options include integrated power, protection, fiber management, site monitoring, and electronic access control.

Part # Z14 Generation II Low-Profile Housing

Next generation CATV network upgrades, including Remote PHY (R-PHY), MAC-PHY, Node + 0, Node + N, etc., are placing increasing thermal and space demands on outside plant pedestal housings. New R-PHY optical nodes are being engineered to dissipate 160 Watts of power; significantly greater than prior generations of pedestal housings were designed to accommodate. BEAD / BABA Compliant

Part # Louvered Low-Profile Housing (LLPH)

Amphenol Louvered Low-Profile Housing provides mounting facilities and security for amplifiers, nodes and other equipment.The louvered vents provide excellent heat dissipation with louvered protection. BEAD / BABA Compliant.

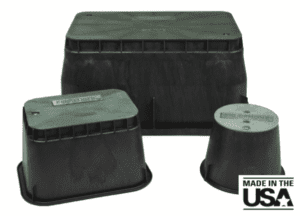

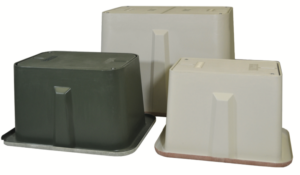

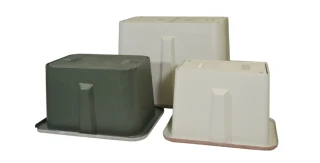

Part # HDPE Below Grade Enclosure

The Amphenol HDPE Below Grade Enclosures (HBGE) are lightweight, molded polyethylene handholes. Designed for light duty placements (parkway/greenway applications), these sturdy below grade enclosures serve a variety of purposes in telecommunications, wireless, utility, Broadband CATV and municipality networks. Now BEAD / BABA Compliant

Part # Z24 Generation II Low-Profile Housing with Extended Depth Base

The Amphenol Z24 pedestal housing was engineered specifically to meet the demands of next generation CATV network architectures and equipment. It is built to withstand the harsh elements typically found in outside plant deployments. Leveraging our expertise in outside plant enclosure engineering, thermal analysis, design and testing, the Z24 is capable of supporting R-PHY compliant equipment across all regions in the USA. BEAD / BABA Compliant.

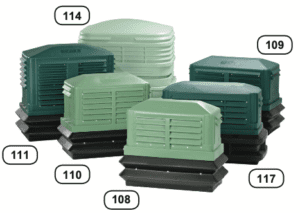

Part # Multi-Purpose Housing

A proven, versatile enclosure designed to environmentally protect outside plant equipment coax cabling, and fiber splicing in OSP networks The Amphenol CMPH-7 Series Multi-Purpose Housing is designed for new installations as well as rehabilitation of existing CATV pedestal housings. The superior structural strength, outstanding environmental protection and ease of installation combine to create a long-life housing that reduces operational expenses. The CMPH-7 series housing has proven itself as a versatile workhorse supporting in a wide variety of applications and customer networks. Available with both vented and non-vented domes. Now BEAD / BABA Compliant.

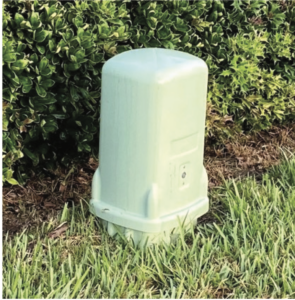

Part # R02 Round Profile Vertical Broadband Pedestal

The R02 pedestal has a round profile dome which is self-latching for reduced chance of being left unlocked. The depth of the dome provides sufficient clearance to support the bend radius of fiber drops exiting a fiber terminal or coax drop cables exiting the RF directional tap. The dome’s height provides ample space for stacked interconnected directional taps with splitters and directional coupler housings in a single pedestal. These pedestals are molded from a polyethylene resin specifically designed for outside plant environments, resisting impact, ultraviolet and environmental degradation.

Part # Composite Mounting Pad (CPAD) Alpha Power Supply Cabinet

This Composite Pad (CPAD) that replaces poured-in-place or pre-cast concrete pads. The CPAD enables carriers to more rapidly deploy their network by eliminating days of project work for poured-in-place concrete pads, and the heavy equipment requirements and safety concerns of handling and transporting pre-cast concrete pads.

Part # Z05 / Z06 Vented Vertical Pedestals

Amphenol‘s Z05 and Z06 series vented vertical pedestals provide ease of installation and maintenance and robust protection for active and passive devices, including fiber components in below-grade outside plant cable environments. BEAD / BABA Compliant

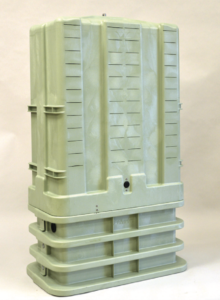

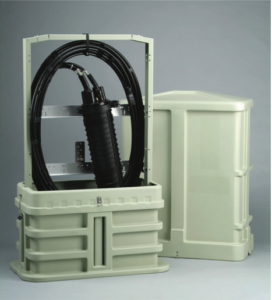

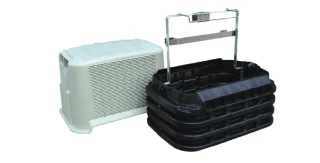

Part # Series 3 Fiber Pedestals

Series 3 Fiber Pedestals are developed as a response to unprecedented industry demand. These pedestals offer the same interface to access, construct, and deliver service as our current popular existing pedestals. In addition, Series 3 Fiber Pedestals are built of the same thermoplastic resin as our broadly utilized CMPH and broadband pedestals with over 20 years of field- proven performance.

Part # Tier Rated Underground Enclosures™ (TRUE)

Amphenol's Tier Rated Underground Enclosures™ (TRUE) are made from advanced composite material using a proprietary molding and gel coat process. The resulting enclosures are uniquely lightweight and rugged, providing superior performance with ease of handling and installation. TRUE grade-level enclosures have a tapered wall design that provides greater usable volume compared to competitive polymer concrete cover sizes. Now BEAD / BABA Compliant.

Part # Z02 Non-Louvered Vertical Broadband Housing

Amphenol’s Z02 Non-Louvered Vertical Broadband Housing provides mounting facilities and security for fiber taps and RF passive components used in Fiber-to-the-Home or coaxial-based access networks. These pedestals are molded from a polyethylene resin designed for outside plant environments, resisting impact, UV rays, and environmental degradation. Network access equipment can be affixed directly to the slotted thru–hole provisions integrated into the equipment mounting stake. In addition, optional bracket kits provide increased mounting flexibility to meet customer-specific needs and applications. Now BEAD / BABA Compliant.

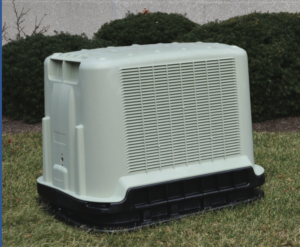

Part # Z08 Series Active Device Low Profile Pedestals

Amphenol has engineered a next generation amplifier pedestal that has been thermally optimized and can passively dissipate over 100W in a small 30” x 20” footprint. BEAD / BABA Compliant

Part # B07 Vertical Broadband Pedestal

Amphenol’s B07 vertical broadband pedestal provides an environmental protective housing for passive or active coax or fiber networks. The B07 has a 14”x20” internal usable area and sits between the B06 and CMPH- 75 series pedestals in terms of size.

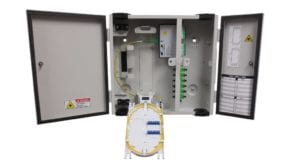

Part # FDE – Fiber Demarcation Enhanced Access Box

Amphenol Broadband Solutions offers a fiber demarcation wall-mount enclosure that provides improved flexibility and versatility for a variety of indoor applications.

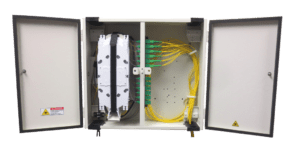

Part # Fiber Demarcation Box Gen 3 (FD3)

Amphenol Broadband Solutions has released an expanded capacity fiber demarcation wall-mount enclosure that provides flexibility and versatility for a variety of indoor applications.

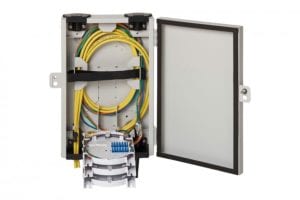

Part # FSB – Fiber Splice Boxes

The FSB series of indoor wall mount enclosures are designed for centralized splice-only applications. These boxes are well suited as optical cable splice collection points for DAS (Distributed Antenna Systems), MTU (Multi-Tenant Unit) commercial business applications and MDU (Multi-Dwelling Unit) residential fiber network applications, to name a few.

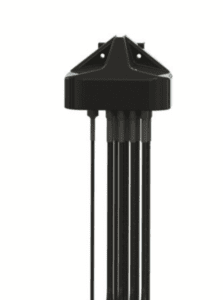

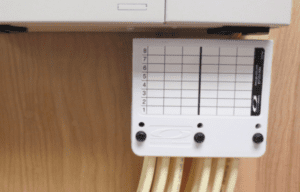

Part # Microduct Manifold

Amphenol Broadband Solutions introduces a new Microduct Manifold to organize and secure microduct tubes. The innovative design of this new manifold achieves strong and consistent tube retention force across all tube positions.

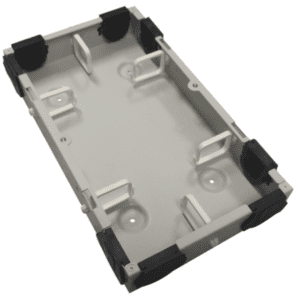

Part # Slack Storage Box

Amphenol Broadband Solutions offers a Slack Storage Box (SSB) that employs a craft-friendly design to protect, organize and store fiber slack.

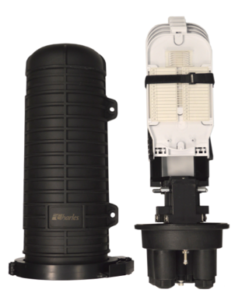

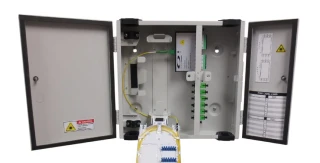

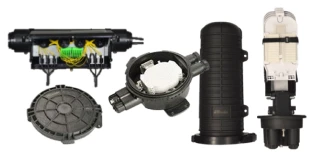

Part # OSP Optical Splice Solutions

ABS offers a complete line of optical splice closures for any application as well as a range of splitters and components. With aerial, pole, wall mount, pedestal and below grade options, ABS fiber splice solutions are designed to be the most versatile, user-friendly and cost-effective on the market.

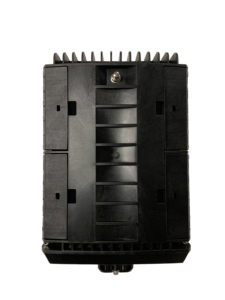

Part # Fiber Sealed Drop Closures (FSDC-H)

The Amphenol fiber optic sealed drop closures (FSDC) provide a versatile and functional cost-effective solution for FTTH network connections to the subscriber.

Part # IPE12123-LTC

12 X 12 X 3 PREMISES ENCLOSURE, QUICK MOUNT, 3 SCREWS, LOCKING INSERT

Part # IPE994-LTC

9 X 9 X 4 PREMISES ENCLOSURE, QUICK MOUNT, 3 SCREWS, LOCKING INSERT

Part # IPE872-LTC

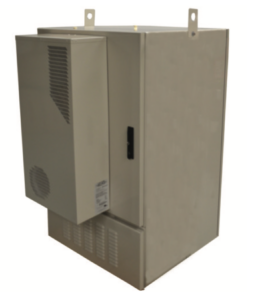

Part # Universal Broadband Enclosure (CUBE)

CUBE Battery Backup (BBU) cabinets are ideally suited for head ends, hub sites, cell sites and other outdoor environments when a large amount of battery backup is required. Multiple BBU cabinets can be combined to achieve an even greater amount of battery backup time or string redundancy. BBU cabinets can be installed adjacent to or remotely from other CUBE Site Support (CUBE-SS) Power Enclosures.

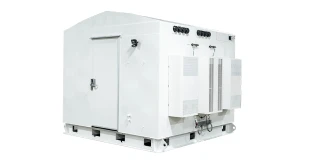

Part # Walk-In Cabinets

Walk-In Cabinets (WIC) are protective walk-in enclosures housing an integrated system of electronic components and equipment that can serve fiber and copper interfaces. The WIC offers a lighter weight alternative to concrete base station shelters providing a lower total cost of ownership. With the use of the Amphenol Thermal Management System as the closure’s main thermal system, the closed loop thermal solution requires no maintenance and offers energy savings over current concrete buildings and huts. The WIC houses multiple equipment racks suitable for customer supplied equipment. The WIC has four CTMS thermal devices mounted on the side walls, as well as a Intelligent Ventilation System (IVS). Motion-sensitive lighting units are mounted on the front and rear. Multiple exterior ground bars all connect to an interior master ground bar.
